create a wheel for a RC car
What is the problem?

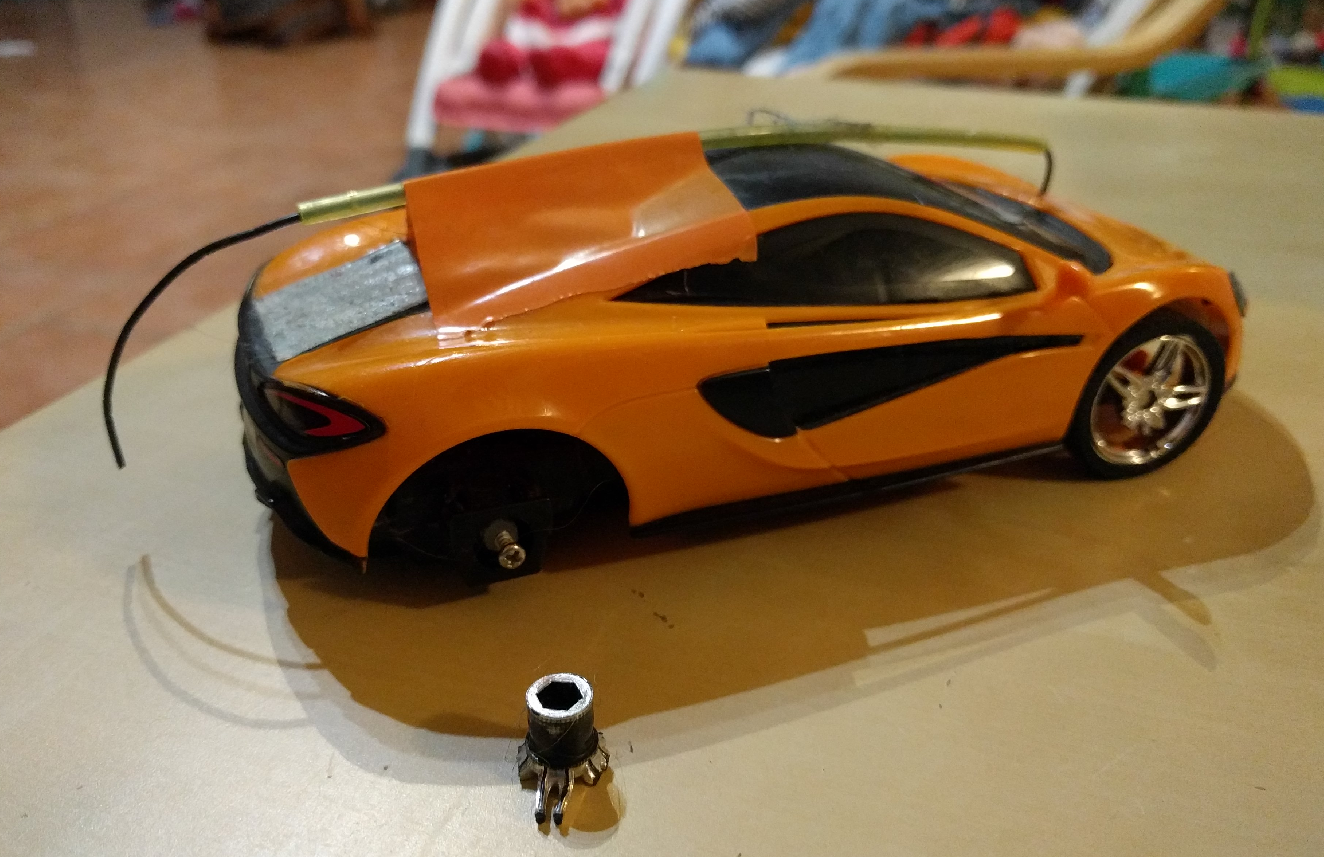

My 5 years old kid let his RC car fall in the stairs. Both back wheels are broken.
![](https://konubinix.eu/ipfs/bafybeichm5ewejizwloyki5fncf6jbijey2fro7ybxusxolmsnyceqv2oq?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeigq4oqdsyjm2w6ieb2ppwleqw4qezynw6ioxhyrmced42ldjso4vm?filename=a.png)
Let’s try to make new ones.
First, lets take some measurements.
![](https://konubinix.eu/ipfs/bafybeien2kwpii5vxvoksqzqdszpfctgrxobtze75dvzc5dik5wyaktkbu?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeidvak6nxybkpjqnulquvgecdihc2a5puaqkkwyhe25vb4ucfxlecu?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeicoebs2s7rhecam5gucfby5hlj5jkvvmgza2bsppoea2crhbn6bsm?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeidqy7hwejbw2wwmkb6jkgar666btvty7m7n27i2iimy2l4ir6j5yy?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeigbmseou466fujn2ingbxx3pbw6jyjtgshnkbrteuxvgopqal5tmy?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeicn4sd43f2velqw75if5hzmei4korbo5c4mzygzatbz3i2kjej3cm?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeiejaxatr7xub3mhn2ue3tavksror4r6gyau2ihpa2hos3d7e23gha?filename=a.png)
![](https://konubinix.eu/ipfs/bafybeibqx7wl57zn7lcbnib3lz6qrnkiqfvesjzbozh6szr7jppg37ivfm?filename=a.png)
The first model that does not work that well
Basically, I want a few cylinders with the same axe and a few boolean operations to combine then. To be noted that the pentagon hole is actually a cylinder hole with 5 dots as a base.
![](https://konubinix.eu/ipfs/QmXPw2TGaR5XD1oUJ7XskHePoEpmacSXDRvUDdkeNMtJBd?filename=a.png)
![](https://konubinix.eu/ipfs/Qmbmc42Yn5oZ3xmnadckEpSDT6gKcff883WTTcCJ1cCg7g?filename=a.png)
![](https://konubinix.eu/ipfs/Qma24Y9U56PJ5Xf3UwkXLnJTmDhBaUwm9vHkyo6aywfMUh?filename=a.png)
![](https://konubinix.eu/ipfs/QmdjngiWu3bApLxVWsojWvAwsghqNMsKuRK5RB58RD73HY?filename=a.png)
First of all, the shape is actually an hexagon rather than a pentagon.
Second try and success: dig into it and make an hexagon
![](https://konubinix.eu/ipfs/Qmf54NmUWyJjHtMhKBLd8Gc2iFgHVdCrZkdoroHwciGMaV?filename=a.png)
![](https://konubinix.eu/ipfs/Qmcb1q3rsZQZLsVA4HNaa9HvRLWbobE8n13A7L1gY5erTy?filename=a.png)
The difference in color in just that the green filament is of poor quality so I changed when printing the second wheel.
